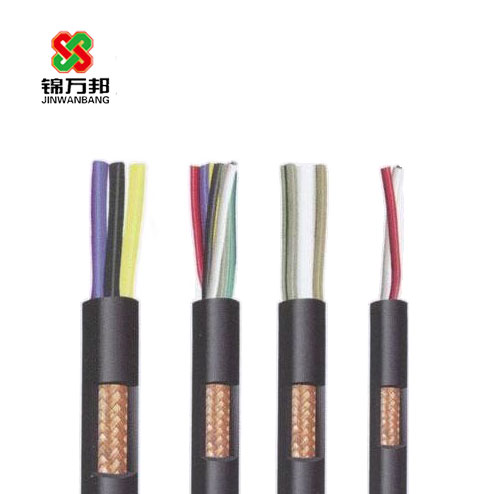

JO-150℃電機繞組引接軟電纜和軟線
485通訊線本產品適用于交流額定電壓300/300V及以下電器、儀表、電子設備及自動化裝置，電線（電纜）線芯長期允許工作溫度70℃，AV-90型、RVP-90型，長期允許工作溫度 90℃。●主要技術
- 電 話：15956084188
- 傳 真：
- 郵 箱：229877070@qq.com
Description
485通訊線
本產品適用于交流額定電壓300/300V及以下電器、儀表、電子設備及自動化裝置，電線（電纜）線芯長期允許工作溫度70℃，AV-90型、RVP-90型，長期允許工作溫度 90℃。
●主要技術性能
1、電線（電纜）的導體電阻，應符合表列規定。
2、兩芯及以上電纜的J緣線芯應絞合成纜，外層絞合方向?yàn)橛蚁颉?nbsp;
3、電線（電纜）的J緣線芯應經受交流電壓50Hz 1500V實驗5min
| 一、 | RVAVP RVAVP-90 300/300V銅芯聚氯乙稀J緣金屬屏蔽電線 |
標稱截面 | 根數/單線 標稱直徑 | J緣厚度 規定值 | 平均外徑 | 2O°C時導體電阻Ω/Km不大于 | 參考重量 | |
上限 | 銅芯 | 鍍錫銅芯 | ||||
| 0.08 | 1/0.32 | 0.4 | 1.9 | 225.2 | 229.6 | 4.14 |
| 0.12 | 1/0.40 | 0.4 | 2.0 | 144.1 | 146.9 | 6.66 |
| 0.2 | 1/0.50 | 0.4 | 2.1 | 92.3 | 94 | 7.4 |
| 0.3 | 1/0.60 | 0.4 | 2.2 | 64.1 | 65.3 | 7.88 |
| 0.4 | 1/0.70 | 0.4 | 2.3 | 47.1 | 48 | 10.14 |
| 二、 | RVSVP 300/300V銅芯聚氯乙稀J緣、金屬屏蔽、聚氯乙稀護套軟電纜（電線） |
標稱截面 | 根數/單線 標稱直徑 | J緣厚度 規定值 | 護套厚度規定值 mm | 平均外徑 | 2O°C時導體電阻Ω/Km不大于 | 參考重量 | ||
下限 | 上限 | 銅芯 | 鍍錫銅芯 | |||||
| 1×0.08 | 7/0.12 | 0.4 | 0.4 | 2.4 | 2.9 | 247 | 254 | 9.3 |
| 1×0.12 | 7/0.15 | 0.4 | 0.4 | 2.4 | 3.0 | 158 | 163 | 10.6 |
| 1×0.2 | 12/0.15 | 0.4 | 0.4 | 2.6 | 3.2 | 92.3 | 95 | 13.2 |
| 1×0.3 | 16/0.15 | 0.5 | 0.4 | 2.9 | 3.5 | 69.2 | 71.2 | 16.1 |
| 1×0.4 | 23/0.15 | 0.5 | 0.4 | 3.0 | 3.7 | 48.2 | 49.6 | 18.8 |
| 1×0.5 | 28/0.15 | 0.5 | 0.4 | 3.1 | 3.8 | 39 | 40.1 | 19.9 |
| 1×0.75 | 42/0.15 | 0.5 | 0.4 | 3.4 | 4.1 | 26 | 26.7 | 24.1 |
| 1×1.0 | 32/0.20 | 0.6 | 0.6 | 4.1 | 4.9 | 19.5 | 20 | 34.1 |
| 1×1.5 | 48/0.20 | 0.6 | 0.6 | 4.3 | 5.2 | 13.3 | 13.7 | 39.9 |
| 1×2.5 | 77/0.20 | 0.7 | 0.6 | 4.9 | 6.0 | 7.98 | 8.21 | 64.6 |
| 2×0.08 | 7/0.12 | 0.4 | 0.4 | 3.2 | 4.2 | 247 | 254 | 16.8 |
| 2×0.08 | 7/0.12 | 0.4 | 0.4 | 2.4×3.5 | 2.9×4.2 | 247 | 254 | 14.9 |
| 2×0.12 | 7/0.15 | 0.4 | 0.6 | 3.7 | 4.9 | 158 | 163 | 22.3 |
| 2×0.12 | 7/0.15 | 0.4 | 0.6 | 2.8×4 | 3.4×4.9 | 158 | 163 | 20.5 |
| 2×0.2 | 12/0.15 | 0.4 | 0.6 | 4.1 | 5.3 | 92.3 | 95 | 28.3 |
| 2×0.2 | 12/0.15 | 0.4 | 0.6 | 3.0×4.4 | 3.6×5.3 | 92.3 | 95 | 25.7 |
| 2×0.3 | 16/0.15 | 0.5 | 0.6 | 4.8 | 6.2 | 69.2 | 71.2 | 41.1 |
| 2×0.3 | 16/0.15 | 0.5 | 0.6 | 3.5×5.1 | 4.2×6.2 | 69.2 | 71.2 | 37.3 |
| 2×0.4 | 23/0.15 | 0.5 | 0.6 | 5.1 | 6.6 | 48.2 | 49.6 | 45.1 |
| 2×0.4 | 23/0.15 | 0.5 | 0.6 | 3.6×5.4 | 4.4×6.6 | 48.2 | 49.6 | 43.7 |
| 2×0.5 | 28/0.15 | 0.5 | 0.6 | 5.3 | 6.8 | 39 | 40.1 | 43.7 |
| 2×0.5 | 28/0.15 | 0.5 | 0.6 | 3.7×5.6 | 4.5×6.8 | 39 | 40.1 | 45.9 |
| 2×0.75 | 42/0.15 | 0.5 | 0.6 | 5.8 | 7.4 | 26 | 26.7 | 59.7 |
| 2×0.75 | 42/0.15 | 0.5 | 0.6 | 4×6.1 | 4.8×7.4 | 26 | 26.7 | 55.2 |
| 2×1 | 32/0.2 | 0.6 | 0.6 | 6.4 | 8.2 | 19.5 | 20 | 73.9 |
| 2×1 | 32/0.2 | 0.6 | 0.6 | 4.3×6.7 | 5.2×8.3 | 19.5 | 20 | 69.4 |
| 2×1.5 | 48/0.20 | 0.6 | 0.8 | 7.3 | 9.2 | 13.3 | 13.7 | 95.5 |
| 2×1.5 | 48/0.20 | 0.6 | 0.8 | 4.9×7.6 | 6.0×9.3 | 13.3 | 13.7 | 88.9 |
| 3×0.12 | 7/0.15 | 0.4 | 0.6 | 3.9 | 5.1 | 158 | 163 | 26.3 |
| 3×0.2 | 12/0.15 | 0.4 | 0.6 | 4.5 | 5.8 | 92.3 | 95 | 38.9 |
| 3×0.3 | 16/0.15 | 0.5 | 0.6 | 5.1 | 6.5 | 69.2 | 71.2 | 48.7 |
| 3×0.4 | 23/0.25 | 0.5 | 0.6 | 5.4 | 6.9 | 48.2 | 49.6 | 61.7 |
| 3×0.5 | 28/0.15 | 0.5 | 0.6 | 5.6 | 7.1 | 39 | 40.1 | 66.5 |
| 3×0.75 | 42/0.15 | 0.5 | 0.6 | 6.1 | 7.8 | 26 | 26.7 | 73.7 |
| 3×1.0 | 32/0.2 | 0.6 | 0.8 | 7.2 | 9.1 | 19.5 | 20 | 100.4 |
| 3×1.5 | 48/0.2 | 0.6 | 0.8 | 8.0 | 10.0 | 13.3 | 13.7 | 132.5 |
| 4×0.12 | 7/0.15 | 0.4 | 0.6 | 4.5 | 5.8 | 158 | 163 | 35.4 |
| 4×0.2 | 12/0.15 | 0.4 | 0.6 | 4.9 | 6.2 | 92.3 | 95 | 45.5 |
| 4×0.3 | 16/0.15 | 0.5 | 0.6 | 5.5 | 7.0 | 69.2 | 71.2 | 57.8 |
| 4×0.4 | 23/0.15 | 0.5 | 0.6 | 5.9 | 7.5 | 48.2 | 49.6 | 67.9 |
| 5×0.12 | 7/0.15 | 0.4 | 0.6 | 4.8 | 6.2 | 158 | 163 | 40.7 |
| 5×0.2 | 12/0.15 | 0.4 | 0.6 | 5.3 | 6.7 | 92.3 | 95 | 52.9 |
| 5×0.3 | 16/0.15 | 0.5 | 0.6 | 6.0 | 7.6 | 69.2 | 71.2 | 66.8 |
| 5×0.4 | 23/0.15 | 0.5 | 0.6 | 6.4 | 8.1 | 48.2 | 49.6 | 78.4 |
| 6-7×0.12 | 7/0.15 | 0.4 | 0.6 | 5.2 | 6.6 | 158 | 163 | 45.8 |
| 6-7×0.2 | 12/0.15 | 0.4 | 0.6 | 5.7 | 7.2 | 92.3 | 95 | 60.3 |
| 6-7×0.3 | 16/0.15 | 0.5 | 0.6 | 6.5 | 8.2 | 69.2 | 71.2 | 76.7 |
| 6-7×0.4 | 23/0.15 | 0.5 | 0.8 | 7.3 | 9.2 | 48.2 | 49.6 | 98.7 |
| 三、 | RVSP、RVSP-90 300/300V銅芯聚氯乙烯J緣金屬屏蔽電線 |
標稱截面 | 根數/單線 標稱直徑 | J緣厚度 規定值 | 平均外徑 | 2O°C時導體電阻Ω/Km不大于 | 參考重量 | |
上限 | 銅芯 | 鍍錫銅芯 | ||||
| 1×0.08 | 7/0.12 | 0.4 | 1.9 | 247 | 254 | 4.8 |
| 1×0.12 | 7/0.15 | 0.4 | 2.0 | 158 | 163 | 6.0 |
| 1×0.2 | 12/0.15 | 0.4 | 2.2 | 92.3 | 95 | 8.4 |
| 1×0.3 | 16/0.15 | 0.5 | 2.6 | 69.2 | 71.2 | 10.8 |
| 1×0.4 | 23/0.15 | 0.5 | 3.0 | 48.2 | 49.6 | 15.9 |
| 1×0.5 | 28/0.15 | 0.5 | 3.1 | 39 | 40.1 | 16.9 |
| 1×0.75 | 42/0.15 | 0.5 | 3.4 | 26 | 26.7 | 21 |
| 1×1.0 | 32/0.20 | 0.6 | 3.8 | 19.5 | 20 | 26.8 |
| 1×1.5 | 48/0.20 | 0.6 | 4.1 | 13.3 | 13.7 | 32.1 |
| 1×2.5 | 77/0.20 | 0.7 | 4.9 | 7.98 | 8.21 | 48.3 |
| 2×0.08 | 7/0.12 | 0.4 | 3.3 | 247 | 254 | 9.6 |
| 2×0.08 | 7/0.12 | 0.4 | 1.9×3.3 | 247 | 254 | 8.8 |
| 2×0.12 | 7/0.15 | 0.4 | 3.5 | 158 | 163 | 10.8 |
| 2×0.12 | 7/0.15 | 0.4 | 2.0×3.5 | 158 | 163 | 10.0 |
| 2×0.2 | 12/0.15 | 0.4 | 3.9 | 92.3 | 95 | 16.0 |
| 2×0.2 | 12/0.15 | 0.4 | 2.2×3.9 | 92.3 | 95 | 14.5 |
| 2×0.3 | 16/0.15 | 0.5 | 4.8 | 69.2 | 71.2 | 26.0 |
| 2×0.3 | 16/0.15 | 0.5 | 2.8×4.8 | 69.2 | 71.2 | 23.1 |
| 2×0.4 | 23/0.15 | 0.5 | 5.2 | 48.2 | 49.6 | 30.7 |
| 2×0.4 | 23/0.15 | 0.5 | 3.0×5.2 | 48.2 | 49.6 | 28.1 |
| 2×0.5 | 28/0.15 | 0.5 | 5.4 | 39 | 40.1 | 30.9 |
| 2×0.5 | 28/0.15 | 0.5 | 3.1×5.4 | 39 | 40.1 | 30.1 |
| 2×0.75 | 42/0.15 | 0.5 | 6.0 | 26 | 26.7 | 41.1 |
| 2×0.75 | 42/0.15 | 0.5 | 3.4×6.0 | 26 | 26.7 | 37.6 |
| 2×1 | 32/0.2 | 0.6 | 6.8 | 19.5 | 20 | 52.5 |
| 2×1 | 32/0.2 | 0.6 | 3.8×6.8 | 19.5 | 20 | 48.6 |
| 2×1.5 | 48/0.20 | 0.6 | 7.4 | 13.3 | 13.7 | 64.0 |
| 2×1.5 | 48/0.20 | 0.6 | 4.1×7.4 | 13.3 | 13.7 | 59.6 |
